Acıbadem University Electron Microscopy Laboratory

Electron Microscopy Laboratory, an indispensable part of R&D studies, where Scanning Electron Microscope with high resolution is used to view nano structures.

Year

2019

Regıon

İstanbul

Area

200 sqm

Acıbadem University Electron Microscopy Laboratory

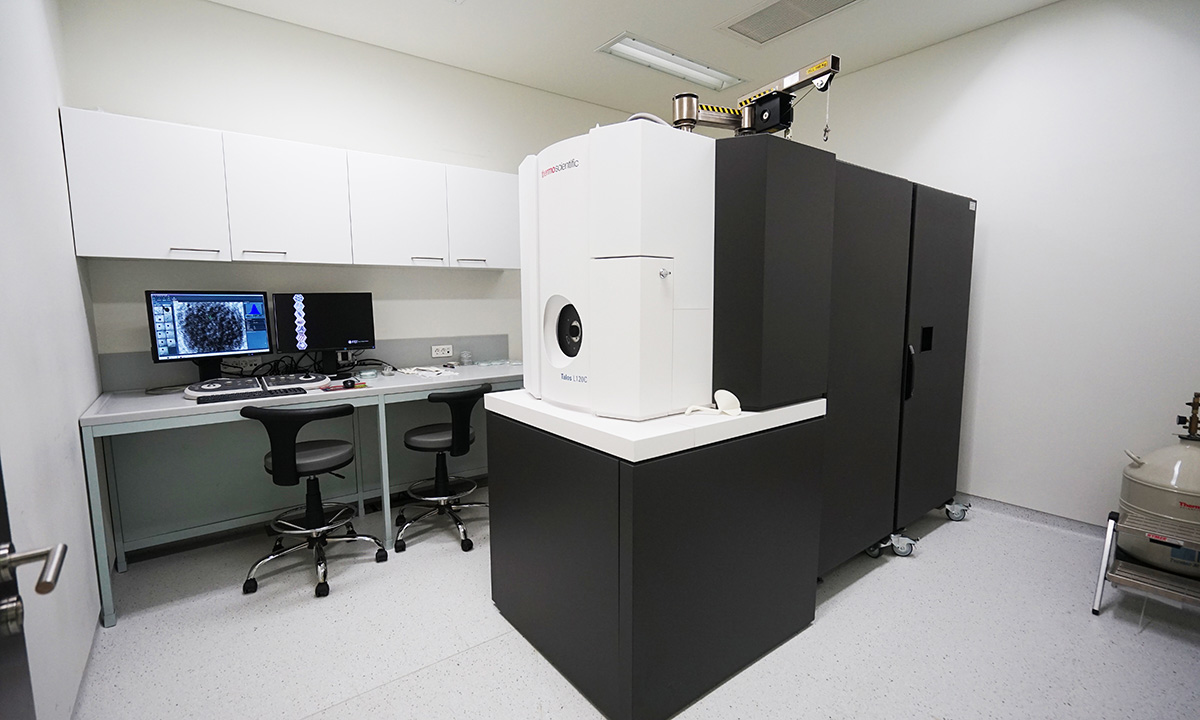

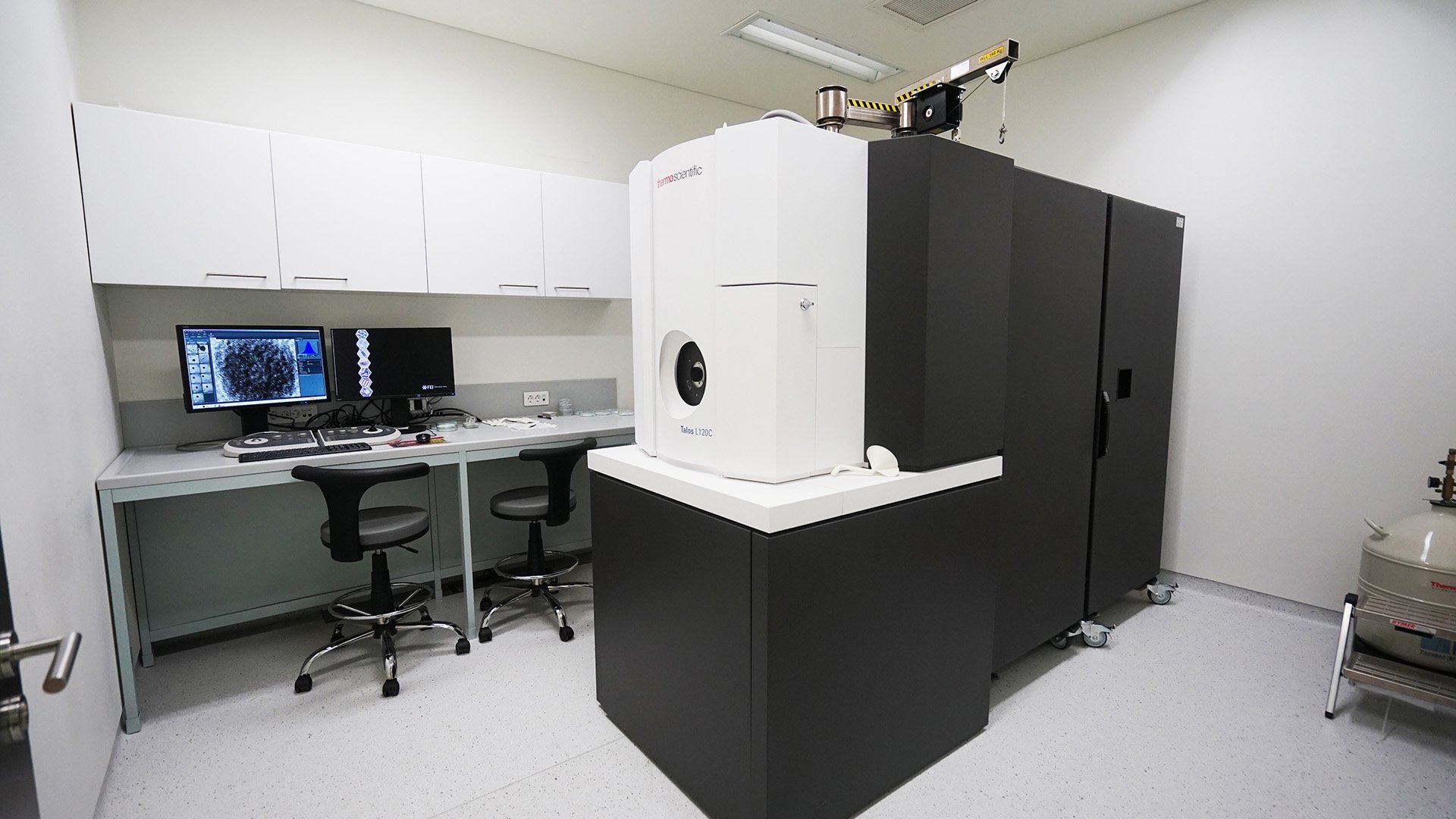

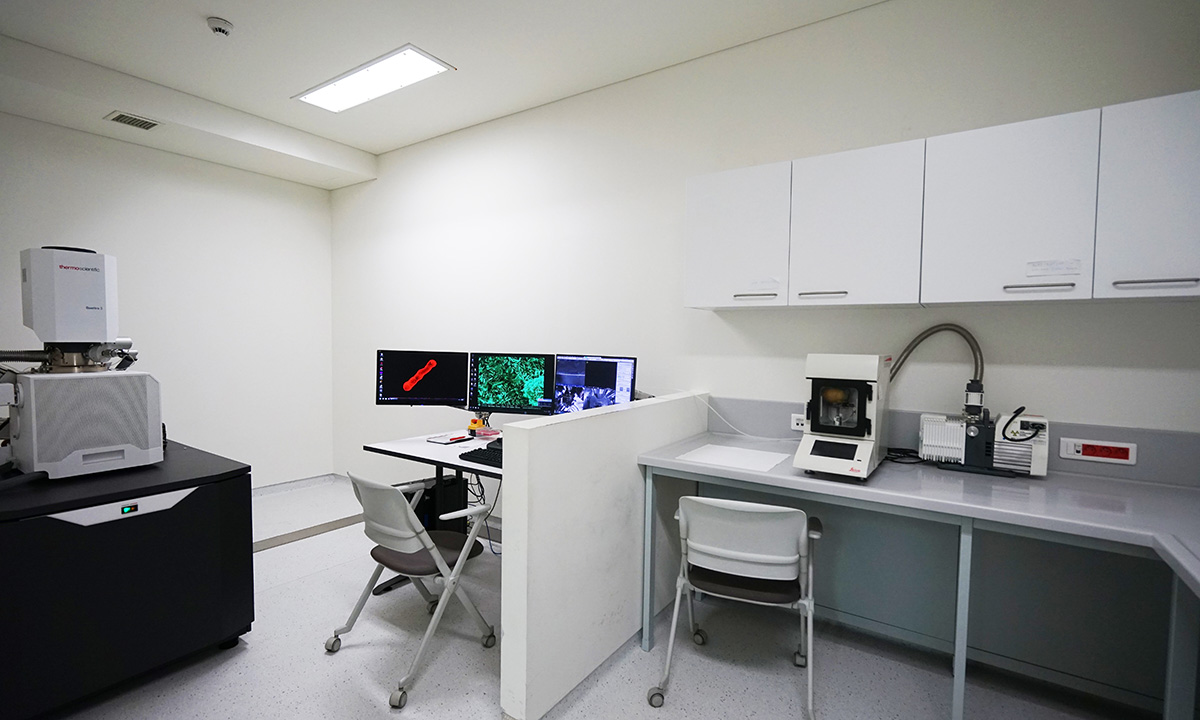

Electron Microscopy Laboratory, an indispensable part of R&D studies, where Scanning Electron Microscope with high resolution is used to view nano structures and Transmission Electron Microscope is used to study thin texture sections prepared at ultra-microtome system, nanoparticles, graphene and similar samples consists of, at an area of 200 square meters, SEM-TEM preparation area and SEM, TEM device laboratories. Sine cooling of the electron microscope is of paramount importance, special coolers which are independent of the main system are used. The most effective use has been ascertained for areas in line with workflow taken from users. Since the minimal movements on the floor have an impact upon microscopes, measurements have been carried out at points that are distant to one another, and the best location has been chosen for the laboratory area given the quake created by the metro trains and equipment density at other laboratories.

  • Info

    Client: Acıbadem University
    Location: Istanbul/Turkey
    Services: Turnkey, Design, Medical Planning, Construction, Project Management and Medical Equipment Procurement
    Area: 200 sqm
